This guide covers the complete Replay Camera installation: mounting the housing, routing and connecting the USB cable, adding the replay camera in the kiosk, and setting up the lens for optimal replay footage.
Required Components
| Item | Quantity | Notes |
|---|---|---|
| Replay Camera assembly (with mounting bracket and housing) | 1 | Pre-assembled |
| Mounting screws | 4 | 1" Screws |
| Replay Camera USB cable | 1 | Runs from camera down headboard into computer cabinet |
| Kiosk | 1 | Used to register the camera in software |
Installation Steps
Part 1 - Mounting the Camera
NOTE
These instructions are written for the Neoshuffle Pro and Signature models, which have a built-in headboard. For custom lane configurations, follow the same steps with these considerations: the camera must be mounted 15–20 cm above the shuffleboard cradle, centred on the table, and positioned below the TV. Route the USB cable to the computer - typically along the same path as the HDMI cable for the TV.
Step 1 - Align the mounting bracket Align the top of the mounting bracket to the edge of the headboard. Make sure the housing is centred. | |
Step 2 - Secure the housing Secure the 4 qty 1" screws into the headboard. | |

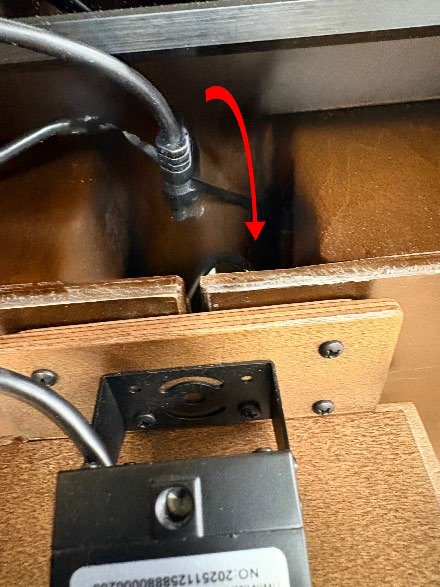

Step 3 - Route the USB cable Feed the USB end of the camera cable down the headboard and into the computer cabinet. | |

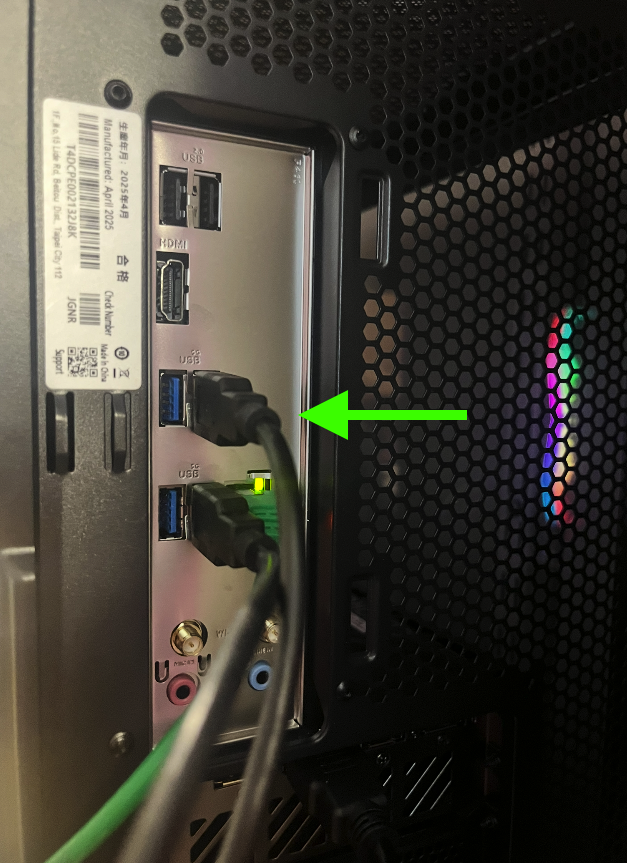

Step 4 - Connect to the computer Plug the USB end of the Replay Camera cable into the port labelled "USB REPLAY CAMERA" on the back of the computer. | |
Step 5 - Place the lid over the camera Place the lid over the camera housing. The lens adjustment rings are accessible from under the housing lid if fine-tuning is needed later. |
Part 2 - Assign Camera

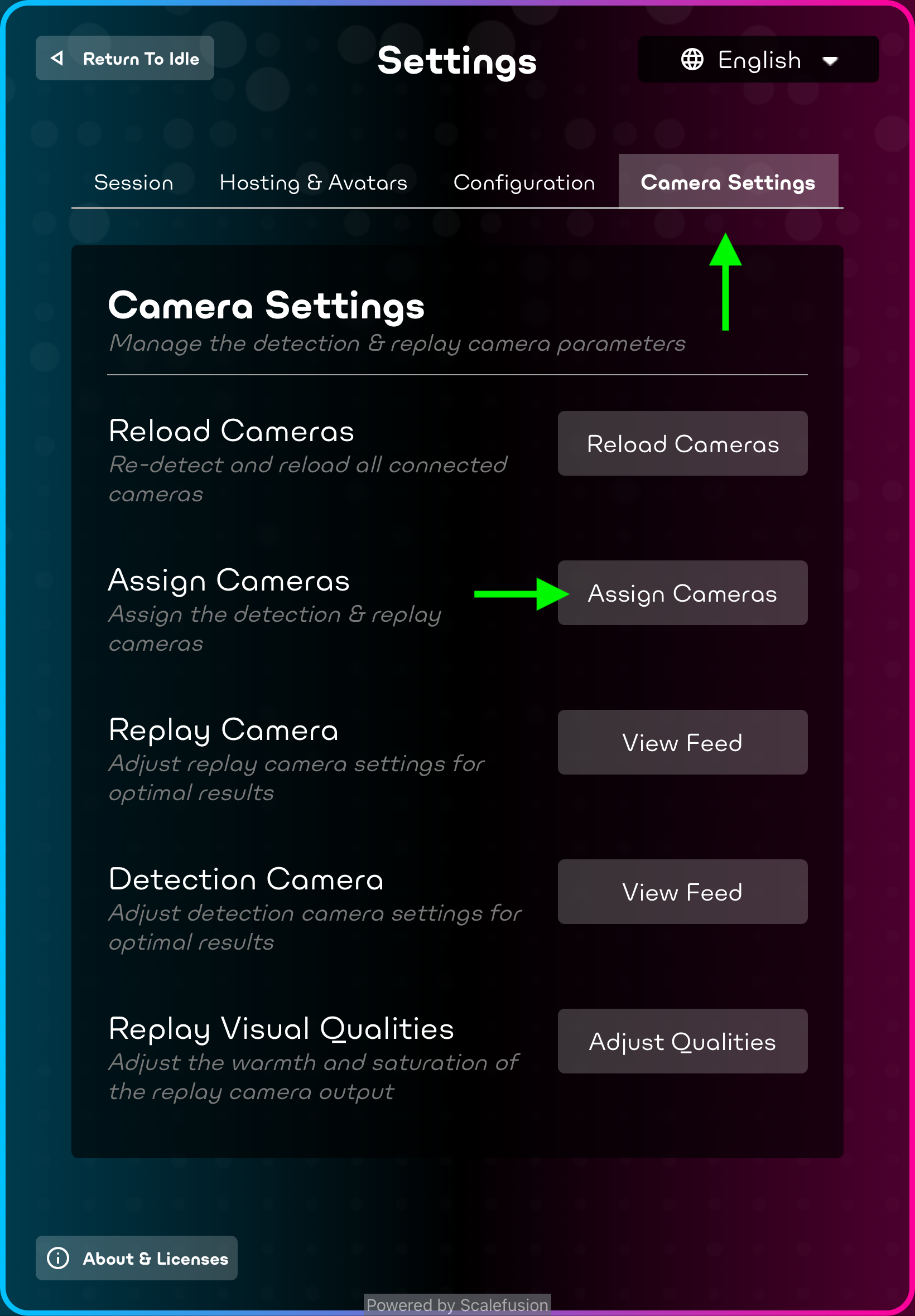

Step 6 - Assign the camera In the setting panel on the kiosk, go to the "Camera Settings" tab and tap assign cameras. Follow the on screen instruction. |
Part 3 - Adjust Replay Camera
NOTE
Do not tighten any locking screws until all adjustments are complete.
Step 7 - Open the live replay feed To open the feed tap the "View Feed" button. _Kiosk → Camera Settings → Replay Camera → "View Feed". You will need the feed visible while making physical adjustment. | |
Step 8 - Understand the lens (5–50 mm varifocal) The lens has three rings: Zoom (wide or tight shot), Aperture/Iris (brightness), and Focus (sharpness). Adjust them in order: Aperture → Zoom → Focus. | |
Step 9 - Set the aperture (brightness) Adjust the aperture ring until the player is well lit and details are visible without overexposure. Avoid images that are too dark or washed-out. Leave all locking screws loose at this stage. | |
Step 10 - Set the zoom Adjust the zoom ring until the player is fully visible during a throw with space around them. Avoid over-zooming (player gets cropped) or zooming too wide (player appears too small). | |
Step 11 - Adjust the camera angle Tilt and angle the mount so the player's full body is visible during a throw and the camera points straight forward. Avoid angling too far down (crops the head) or too far up (crops the table out of view). | |
Step 12 - Set the focus Slowly rotate the focus ring while watching the live feed and stop when the player appears sharp. | |
Step 13 - Lock the camera Carefully tighten all camera locking screws. Re-check the live feed to confirm nothing shifted - if the image moved, loosen, readjust, and re-tighten. |

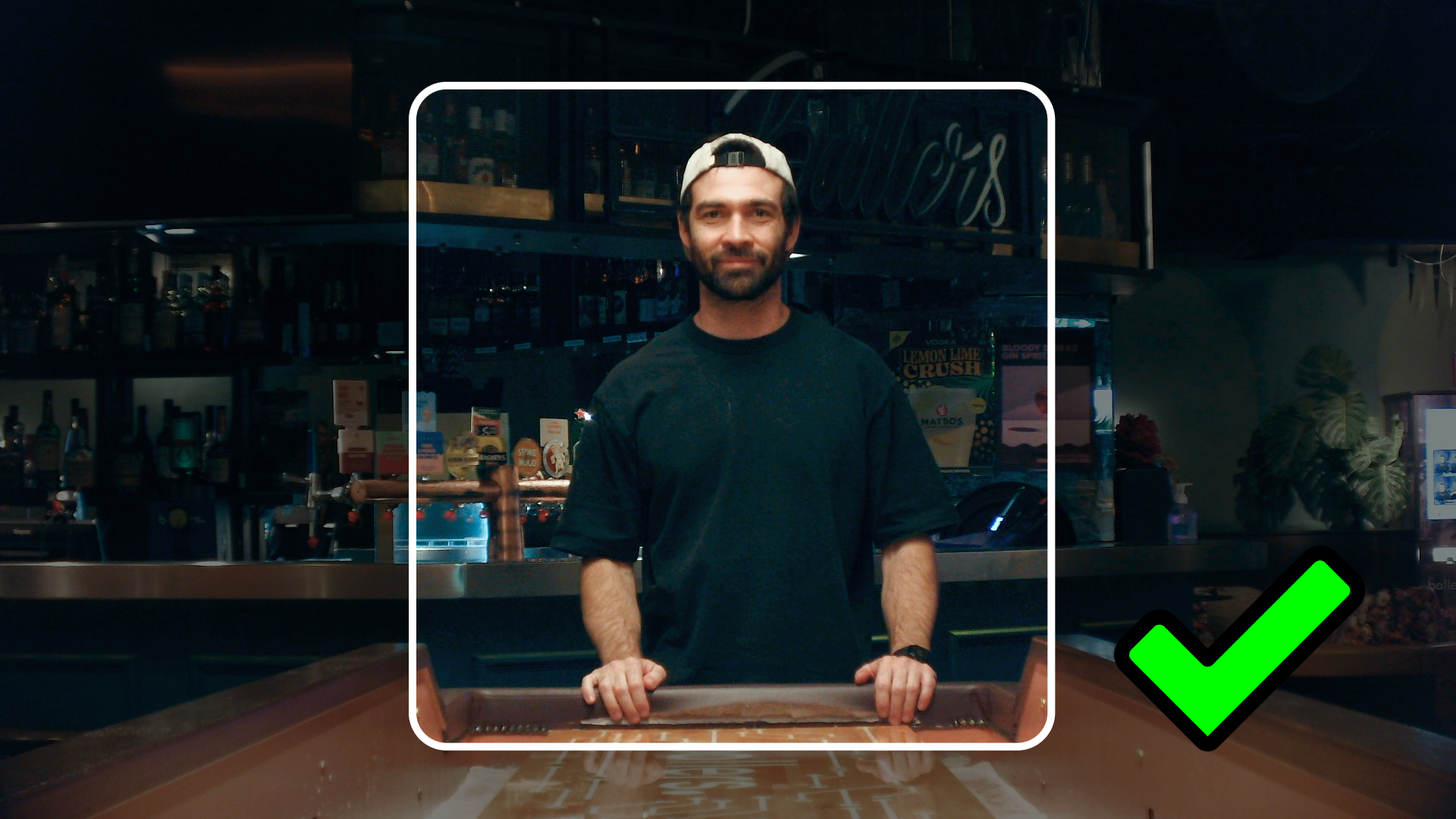

Optimal Target Framing
The final image should show:
- Player fully visible during a throw (head to waist minimum)
- Player centered horizontally
- Camera level, not tilted
- Image sharp and well exposed
Final Test
To do a final test start a session and play a game of Neoshuffle, keep your eye out for a replay and make sure everything looks right.
